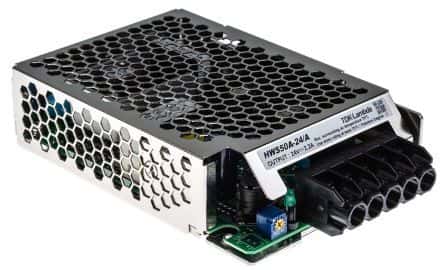

50W AC/DC power supply, single output, 24V nominal voltage with a 2.2A maximum output current. Features 87% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-265V AC. Operates from -10°C to 70°C and is chassis mountable. Dimensions are 120mm (L) x 31.5mm (W) x 82mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK HWS50A-24/A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK HWS50A-24/A technical specifications.
| Package/Case | 120 |
| Current - Output 1 | 2.2A |
| Depth | 120mm |
| Efficiency | 87% |
| Height | 82mm |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 120mm |
| Max Current Rating | 650mA |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.2A |
| Max Output Power | 52.8W |
| Max Output Voltage | 28.8V |
| Min Output Voltage | 19.2V |
| Max Power Dissipation | 50W |
| Mount | Chassis Mount |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 2.2A |
| Output Power | 50W |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | HWS-A (50W) |
| Voltage - Output 1 | 24V |
| Weight | 10.582189oz |
| Width | 31.5mm |
| RoHS | Compliant |
