Board mount DC/DC converter delivering 12V at 53A, with a maximum output power of 636W. Features 83% efficiency, 3kV isolation voltage, and a wide AC input range of 85-265V. Operates from -40°C to 71°C and is CE approved and RoHS compliant. Designed for chassis or panel mounting, with dimensions of 6.5" L x 3.94" W x 3.23" H.
MountingChassis Mount, Panel
Power636W
Quick Jump:
Technical Specifications
TDK HWS600-12/HD technical specifications.
General
| Approvals | CE |
| Current - Output 1 | 53A |
| Depth | 100mm |
| Efficiency | 83% |
| Height | 3.23inch |
| Isolation Voltage | 3kV |
| Length | 6.5inch |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 53A |
| Max Output Power | 636W |
| Max Power Dissipation | 600W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 53A |
| Output Power | 636W |
| Output Voltage | 12V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HWS |
| Voltage - Output 1 | 12V |
| Weight | 8lb |
| Width | 3.94inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK HWS600-12/HD Datasheet
Download the complete datasheet for TDK HWS600-12/HD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

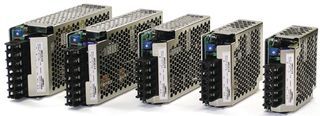

Product Images
