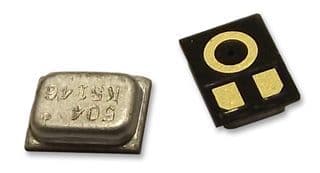

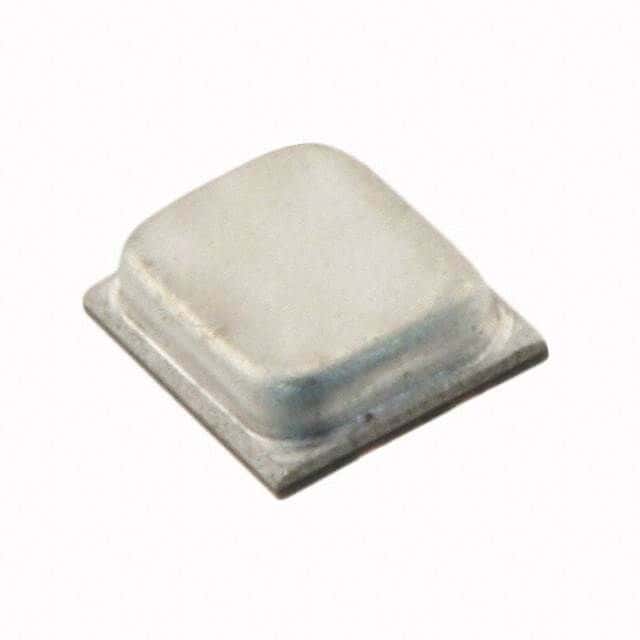

The INMP504ACEZ-R7 is a MEMS electret condenser microphone from TDK, featuring omnidirectional pickup and a low operating supply current of 225uA. It operates within a supply voltage range of 1.6V to 3.3V and has an impedance of 200 ohms. The microphone is packaged in a surface-mount LGA package with a height of 0.88mm and a length of 3.35mm. It is compliant with RoHS and Reach SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK INMP504ACEZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LGA |
| Depth | 2.5mm |
| Direction | Omnidirectional |
| Height | 0.88mm |
| Impedance | 200R |
| Length | 3.35mm |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Operating Supply Current | 225uA |
| Output Type | Analog |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | INMP504 |
| Shape | Rectangular |
| Termination | Solder |
| RoHS | Compliant |
