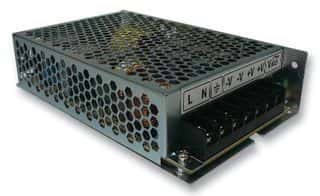

AC/DC power supply, single output, delivering 5V at 16A for an 80W maximum output power. Features 3kV isolation voltage, 79% efficiency, and operates within an 88-264V AC input range. Chassis mountable with dimensions of 6.3 inches length, 3.8 inches width, and 1.5 inches height. RoHS compliant and rated for operation from -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK LS100-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK LS100-5 technical specifications.
| Approvals | CE |
| Current - Output 1 | 16A |
| Depth | 96.52mm |
| Efficiency | 79% |
| Height | 1.5inch |
| Input Current | 1.2A |
| Isolation Voltage | 3kV |
| Length | 6.3inch |
| Max Current Rating | 2.2A |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 88V |
| Max Input Voltage | 264V |
| Min Input Voltage | 88V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 16A |
| Max Output Power | 80W |
| Max Power Dissipation | 100W |
| Mount | Chassis Mount, Panel, Chassis |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 16A |
| Output Power | 80W |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LS |
| Voltage - Output 1 | 5V |
| Weight | 14.109585oz |
| Width | 3.8inch |
| RoHS | Compliant |
