150W AC-DC regulated power supply module featuring a single 15V output at 10A. This board mount converter operates from 88V to 264V AC input, delivering 150W maximum output power with 85% efficiency. It offers 3kV isolation voltage and a wide operating temperature range of -25°C to 70°C. Designed for chassis or panel mounting, this RoHS compliant component is suitable for demanding applications.
MountingChassis Mount, Panel
Power150W
Quick Jump:
Technical Specifications
TDK LS150-15 technical specifications.
General
Current - Output 1
10A
Depth
99.06mm
Efficiency
85%
Height
1.5inch
Input Current
2A
Isolation Voltage
3kV
Length
7.8inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
88V
Max Input Voltage
264V
Min Input Voltage
88V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Current
10A
Max Output Power
150W
Max Power Dissipation
150W
Mount
Chassis Mount, Panel
Nominal Output Voltage
15V
Number of Outputs
1
Output Current
10A
Output Power
150W
Output Voltage
15V
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
LS (150W)
Voltage - Output 1
15V
Weight
1.51678oz
Width
3.9inch
Compliance
RoHS
Compliant
Datasheet
TDK LS150-15 Datasheet
Download the complete datasheet for TDK LS150-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

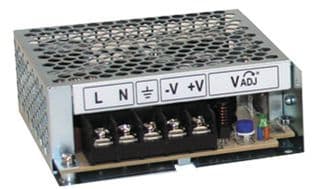

Product Images
