TDK
LTF4022T-3R3N-D
Inductor Power Shielded Wirewound 3.3uH 30% 1MHz Ferrite 2.1A 0.064Ohm DCR Automotive T/R
PackageSMD/SMT
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK LTF4022T-3R3N-D technical specifications.
General
Package/Case
SMD/SMT
Core Material
Ferrite
DC Resistance (DCR)
64mR
Height
2.2mm
Inductance
3.3uH
Lead Free
Lead Free
Length
5.5mm
Max DC Current
1.6A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Ratings
AEC-Q200
RoHS Compliant
Yes
Saturation Current
1.6A
Series
LTF4022-D
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1MHz
Tolerance
30%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
TDK LTF4022T-3R3N-D Datasheet
Download the complete datasheet for TDK LTF4022T-3R3N-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

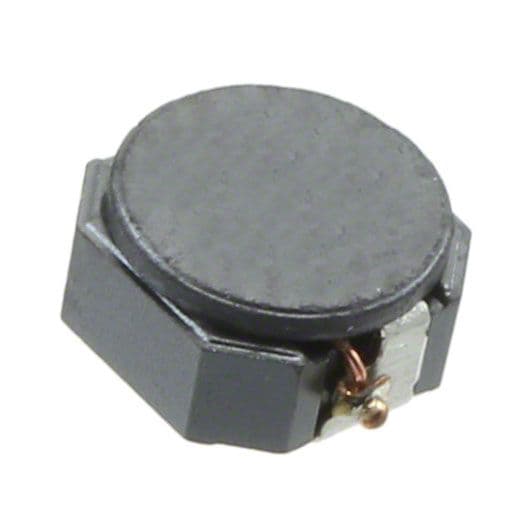

Product Images
