Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 1.7A RMS current rating, and 1.4A saturation current. Operates within a -40°C to 105°C temperature range, with a low DC resistance of 160mΩ. Dimensions are 5.2mm length, 5.1mm width, and 2.2mm height.
PackageNonstandard
Current Rating1.7A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK LTF5022T-100M1R4-LC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.7A |
| DC Resistance (DCR) | 160mR |
| Depth | 5.1mm |
| Height | 2.2mm |
| Height - Seated (Max) | 0.087inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max DC Current | 1.4A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.7A |
| RoHS Compliant | Yes |
| Saturation Current | 1.4A |
| Series | LTF5022T |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK LTF5022T-100M1R4-LC Datasheet
Download the complete datasheet for TDK LTF5022T-100M1R4-LC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

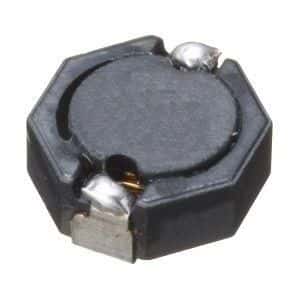

Product Images
