Surface mount, shielded, wirewound power inductor with 3.3µH inductance and 30% tolerance. Features a ferrite core, 2.7A RMS current rating, and 2.5A saturation current. DC resistance is 60mΩ at a test frequency of 100kHz. Operates from -40°C to 105°C and is supplied in tape and reel packaging.
PackageNonstandard
Current Rating2.7A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK LTF5022T-3R3N2R5-LC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.7A |
| DC Resistance (DCR) | 60mR |
| Depth | 5.1mm |
| Height | 2.2mm |
| Height - Seated (Max) | 0.087inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max DC Current | 2.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.7A |
| RoHS Compliant | Yes |
| Saturation Current | 2.5A |
| Series | LTF5022T |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK LTF5022T-3R3N2R5-LC Datasheet
Download the complete datasheet for TDK LTF5022T-3R3N2R5-LC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

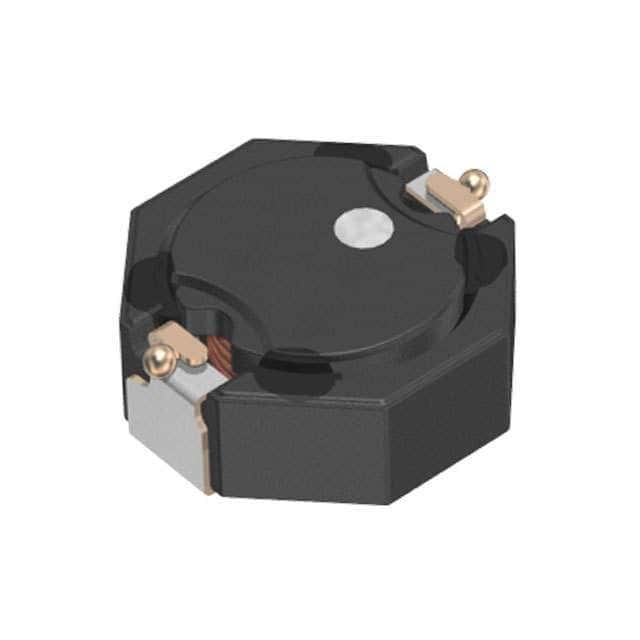

Product Images
