Surface mount, shielded wirewound power inductor with 4.7µH inductance and 30% tolerance. Features a ferrite core, 2.18A RMS current capability, and 2A saturation current. DC resistance is 74mΩ, with a maximum operating temperature of 105°C. Dimensions are 6.5mm length, 5mm width, and 2.2mm height. Packaged in tape and reel for automated assembly.
PackageNonstandard
Resistance0.062R
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK LTF5022T-4R7N2R0-D technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 74mR |
| Height | 2.2mm |
| Inductance | 4.7uH |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max DC Current | 2.03A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Resistance | 0.062R |
| RMS Current (Irms) | 2.18A |
| RoHS Compliant | Yes |
| Saturation Current | 2A |
| Series | LTF5022T |
| Series Resistance | 74mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Weight | 0.005997oz |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK LTF5022T-4R7N2R0-D Datasheet
Download the complete datasheet for TDK LTF5022T-4R7N2R0-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

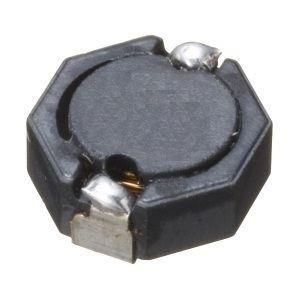

Product Images
