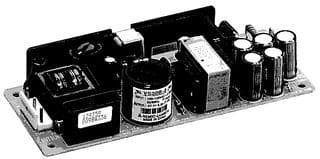

Enclosed AC/DC power supply delivering 30W total output power. Features include a 5V output with 5A current capability, a +15V output at 1.2A, and a -15V output at 600mA. Operates with an input voltage range of 85-265V AC, boasting 73% efficiency and 3kV isolation voltage. Designed for chassis or panel mounting, this 3-output converter operates between 0°C and 60°C. Approvals include CE, UL, and CSA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK LWT-30H-5FF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK LWT-30H-5FF technical specifications.
| Approvals | CE, UL, CSA |
| Current - Output 1 | 5A |
| Current - Output 2 | 1.2A |
| Current - Output 3 | 600mA |
| Depth | 60mm |
| Efficiency | 73% |
| Height | 0.98inch |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 6.29inch |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.2A |
| Max Output Power | 30W |
| Max Power Dissipation | 30W |
| Mount | Chassis Mount, Panel |
| Number of Outputs | 3 |
| Output Current | 5A |
| Output Power | 30W |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | LW |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Weight | 300g |
| Width | 2.75inch |
| RoHS | Not CompliantNo |
