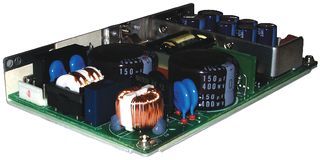

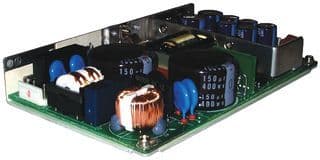

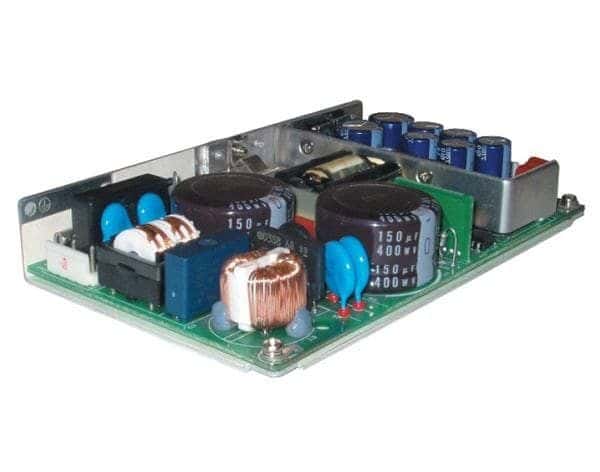

Enclosed AC/DC power supply delivering 50W total output power. Features three outputs: 5V at 8A, +12V at 1.5A, and -12V at 1A. Operates with an AC input range of 85-265V and offers 3kV isolation voltage. Designed for chassis or panel mounting, this 50W converter boasts a 72% efficiency and a wide operating temperature range of 0°C to 60°C. Approvals include CE, UL, and CSA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK LWT-50H-522 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK LWT-50H-522 technical specifications.
| Approvals | CE, UL, CSA |
| Current - Output 1 | 8A |
| Current - Output 2 | 1.5A |
| Current - Output 3 | 1A |
| Depth | 97mm |
| Efficiency | 72% |
| Height | 1.02inch |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 6.29inch |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Power | 50W |
| Max Power Dissipation | 50W |
| Mount | Chassis Mount, Panel |
| Number of Outputs | 3 |
| Output Current | 8A |
| Output Power | 50W |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | LW |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Weight | 400g |
| Width | 3.82inch |
| RoHS | Not CompliantNo |
