Surface mount power inductor with 10µH inductance and 10% tolerance, featuring a ferrite core. This unshielded wirewound component operates with a rated current of 210mA and a DC resistance of 2.197Ω. It boasts a Q factor of 30 at 2.52MHz and a self-resonant frequency of 32MHz, housed in a 1008 (2520 metric) case. Operating temperature range is -40°C to 105°C, packaged in tape and reel.
Package1008
Resistance1.69R
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK NLCV25T-100K-PF technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| DC Resistance (DCR) | 2.197R |
| Depth | 2.1mm |
| Height | 1.8mm |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max DC Current | 210mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 30 |
| Rated Current-Max | 210mA |
| Reach SVHC Compliant | No |
| Resistance | 1.69R |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 32MHz |
| Series | NLCV-PF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLCV25T-100K-PF Datasheet
Download the complete datasheet for TDK NLCV25T-100K-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

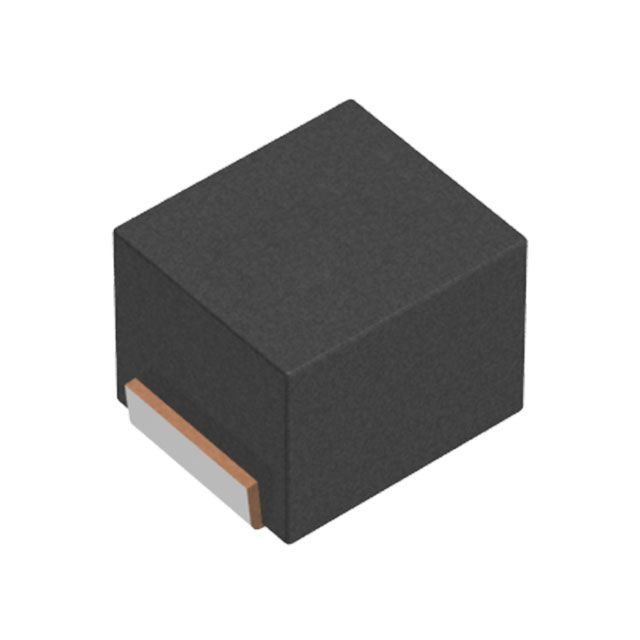

Product Images
