Surface mount fixed inductor with 10µH inductance and 10% tolerance. Features a ferrite core, unshielded wirewound construction, and a Q factor of 30 at 2.52MHz. Rated for 0.21A maximum DC current and 1.32Ω DC resistance. Encased in a 1008 (2520 metric) SMD/SMT package, operating from -40°C to 125°C.
Package1008
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK NLCV25T-100K-PFR technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| DC Resistance (DCR) | 1.32R |
| Depth | 2.1mm |
| Height | 1.8mm |
| Inductance | 10uH |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max DC Current | 210mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 30 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 30MHz |
| Series | NLCV-PF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLCV25T-100K-PFR Datasheet
Download the complete datasheet for TDK NLCV25T-100K-PFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

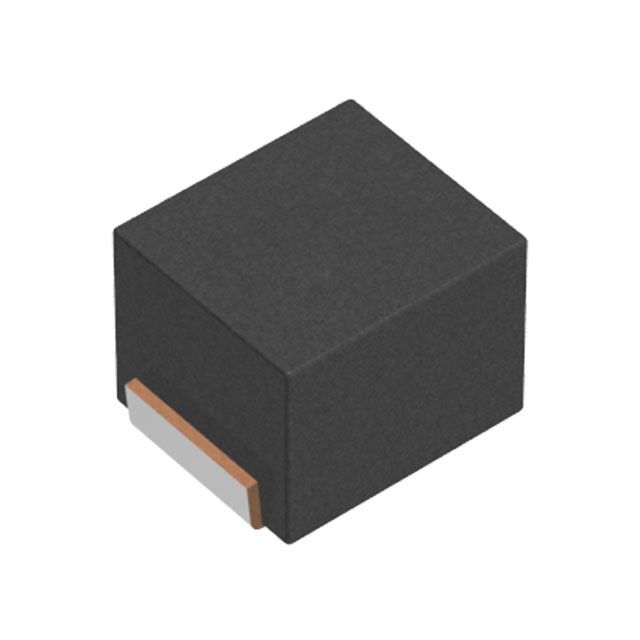

Product Images
