Surface mount power inductor featuring 1µH inductance with a 20% tolerance, designed for high-frequency applications with a Q factor of 20 at 7.96MHz. This unshielded, wirewound ferrite core component offers a maximum DC current rating of 475mA and a low DC resistance of 340mΩ. Encased in a compact 1008 (2520 metric) SMD package, it operates within a temperature range of -40°C to 105°C and is RoHS compliant.
Package1008
Resistance340mR
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications
TDK NLCV25T-1R0M-PF technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| DC Current | 475mA |
| DC Resistance (DCR) | 340mR |
| Depth | 2.1mm |
| Height | 1.8mm |
| Inductance | 1uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max DC Current | 475mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Rated Current-Max | 475mA |
| Resistance | 340mR |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 200MHz |
| Series | NLCV-PF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 7.96MHz |
| Tolerance | 20% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLCV25T-1R0M-PF Datasheet
Download the complete datasheet for TDK NLCV25T-1R0M-PF to view detailed technical specifications.
No datasheet is available for this part.

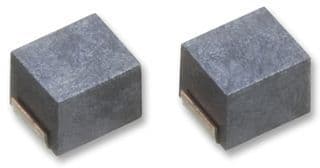

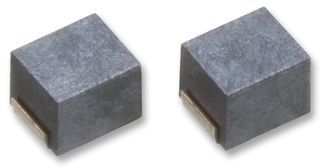

Product Images
