Surface mount, unshielded wirewound power inductor with 2.2µH inductance and 20% tolerance. Features a 730mA current rating, 270mΩ DC resistance, and a Q factor of 20 at 7.96MHz. Operates within a -40°C to 125°C temperature range and is RoHS compliant. Housed in a 1008 (2520 metric) case, this component is supplied on tape and reel.
Package1008
Current Rating730mA
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK NLCV25T-2R2M-PFR technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Current Rating | 730mA |
| DC Resistance (DCR) | 270mR |
| Depth | 2.1mm |
| Height | 0.071inch |
| Inductance | 2.2uH |
| Lead Free | Lead Free |
| Length | 0.098inch |
| Max DC Current | 390mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 68MHz |
| Series | NLCV |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 7.96MHz |
| Tolerance | 20% |
| Width | 0.079inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLCV25T-2R2M-PFR Datasheet
Download the complete datasheet for TDK NLCV25T-2R2M-PFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

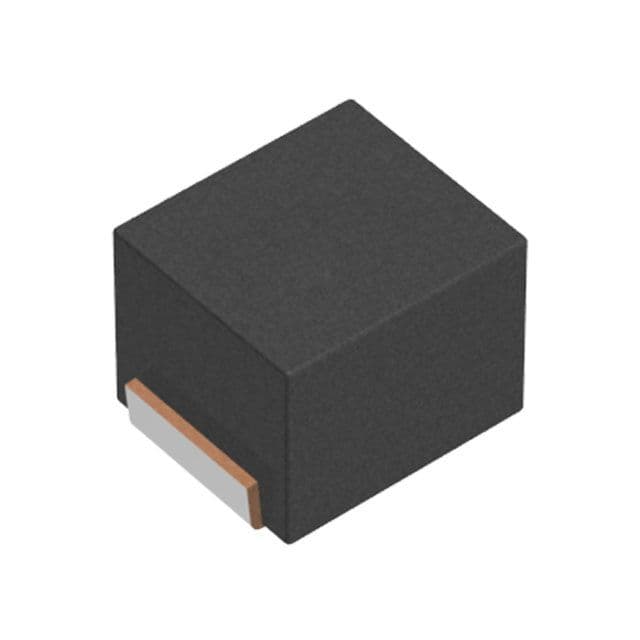

Product Images
