Surface mount fixed inductor featuring 68µH inductance with a 10% tolerance, operating at a test frequency of 2.52MHz. This unshielded, wirewound power inductor utilizes a ferrite core and is housed in a 1210 (3225 metric) case. It offers a rated current of 140mA, a DC resistance of 3.64Ω, and a Q factor of 15 at 2.52MHz. The component operates within a temperature range of -40°C to 105°C and is supplied on tape and reel.
Package1210
Current Rating140mA
MountingSurface Mount
Inductance68uH
Quick Jump:
Technical Specifications
TDK NLCV32T-680K-PF technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 140mA |
| DC Resistance (DCR) | 3.64R |
| Depth | 2.7mm |
| Height | 2.2mm |
| Inductance | 68uH |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max DC Current | 140mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 15 |
| Rated Current-Max | 140mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 12MHz |
| Series | NLCV |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Weight | 0.001764oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLCV32T-680K-PF Datasheet
Download the complete datasheet for TDK NLCV32T-680K-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

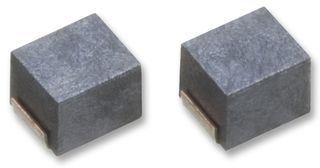

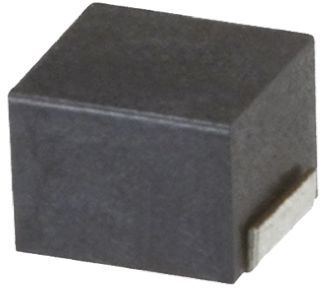

Product Images
