Surface mount power inductor featuring 2.2µH inductance with a 20% tolerance. This shielded, molded wirewound component utilizes a ferrite core and offers a 500mA current rating with 108mΩ DC resistance. Designed for surface mounting in a 1210 case size, it operates within a -40°C to 105°C temperature range and has a self-resonant frequency of 68MHz.
Package1210
Current Rating500mA
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK NLFV32T-2R2M-EF technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 500mA |
| DC Resistance (DCR) | 108mR |
| Height - Seated (Max) | 0.094inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max DC Current | 500mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 68MHz |
| Series | NLFV |
| Shielding | Shielded |
| Test Frequency | 7.96MHz |
| Tolerance | 20% |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLFV32T-2R2M-EF Datasheet
Download the complete datasheet for TDK NLFV32T-2R2M-EF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

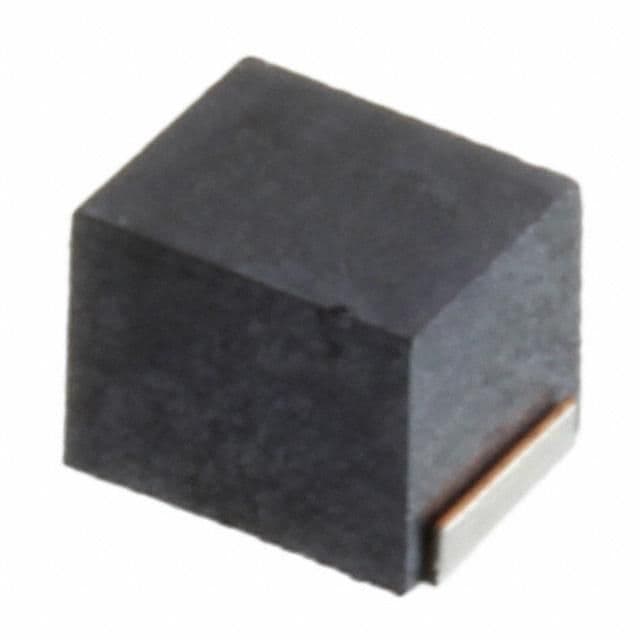

Product Images
