Surface mount fixed inductor with 1.5µH inductance and 5% tolerance. Features a ferrite core, unshielded construction, and a Q factor of 30 at 7.96MHz. Rated for 220mA maximum DC current with a DC resistance of 1.3Ω. Encased in a 1008 (2520 metric) package, operating from -40°C to 105°C.
Package1008
Current Rating220mA
MountingSurface Mount
Inductance1.5uH
Quick Jump:
Technical Specifications
TDK NLV25T-1R5J-EF technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| Current Rating | 220mA |
| DC Resistance (DCR) | 1.3R |
| Height | 1.8mm |
| Height - Seated (Max) | 0.075inch |
| Inductance | 1.5uH |
| Inductance Tolerance | 5% |
| Lead Free | Lead Free |
| Length | 0.098inch |
| Max DC Current | 220mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Q Factor | 30 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 182MHz |
| Series | NLV-EF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 7.96MHz |
| Tolerance | 5% |
| Width | 0.079inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLV25T-1R5J-EF Datasheet
Download the complete datasheet for TDK NLV25T-1R5J-EF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

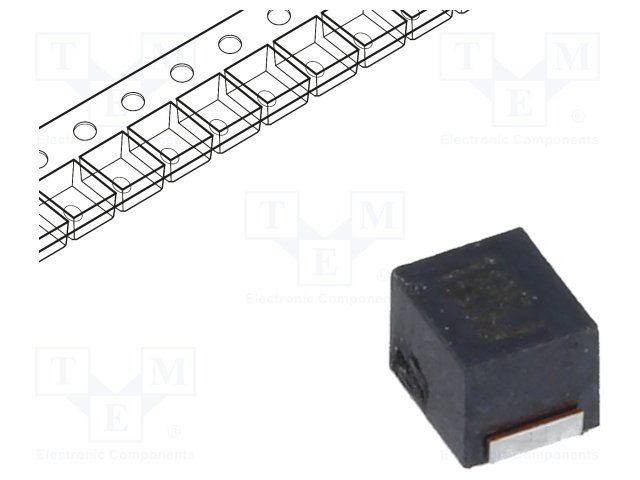

Product Images
