Surface mount fixed inductor featuring 27µH inductance with a 5% tolerance, designed for general-purpose applications. This unshielded, wirewound ferrite core component operates within a -40°C to +105°C temperature range and offers a Q factor of 25 at 2.52MHz. It supports a maximum DC current of 115mA and has a DC resistance of 6.3Ω. The 1008 (2520 metric) case code provides a compact footprint with dimensions of 2.5mm (L) x 2mm (W) x 1.8mm (H).
Package1008
MountingSurface Mount
Inductance27uH
Quick Jump:
Technical Specifications
TDK NLV25T-270J-EF technical specifications.
General
Case Code (Imperial)
1008
Case Code (Metric)
2520
Package/Case
1008
Core Material
Ferrite
DC Resistance (DCR)
6.3R
Height
1.8mm
Inductance
27uH
Inductance Tolerance
5%
Lead Free
Lead Free
Length
2.5mm
Max DC Current
115mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Cut Tape
Q Factor
25
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
21MHz
Series
NLV-EF
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
2.52MHz
Tolerance
5%
Width
2mm
Compliance
RoHS
Compliant
Datasheet
TDK NLV25T-270J-EF Datasheet
Download the complete datasheet for TDK NLV25T-270J-EF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

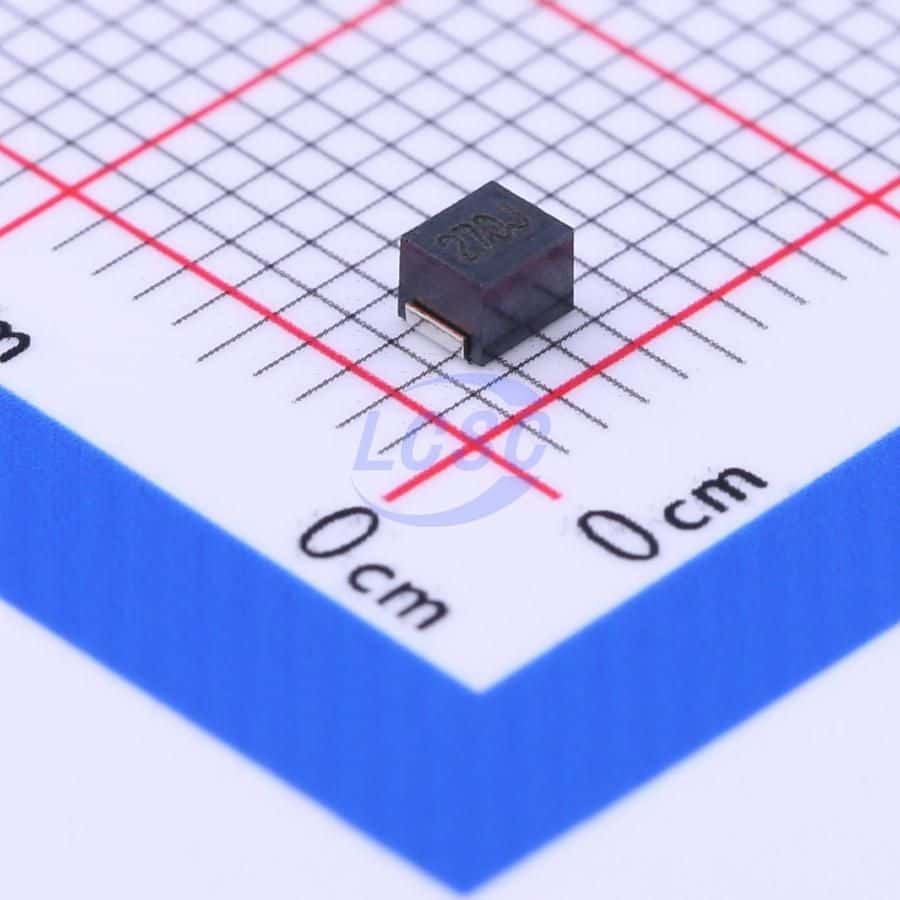

Product Images
