General purpose surface mount inductor featuring 3.3µH inductance with a 5% tolerance. This ferrite-core component operates within a -40°C to 105°C temperature range and offers a maximum DC current rating of 260mA. It has a DC resistance of 1.2Ω and a self-resonant frequency of 60MHz, with a Q factor of 30 at 7.96MHz. The 1210 (3225 metric) case size is suitable for SMD/SMT termination, and the component is halogen-free and RoHS compliant.
Package1210
Current Rating260mA
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK NLV32T-3R3J-EF technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 260mA |
| DC Resistance (DCR) | 1.2R |
| Height | 2.2mm |
| Height - Seated (Max) | 0.094inch |
| Inductance | 3.3uH |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max DC Current | 260mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Q Factor | 30 |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 60MHz |
| Series | NLV-EF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 7.96MHz |
| Tolerance | 5% |
| Weight | 0.001764oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK NLV32T-3R3J-EF Datasheet
Download the complete datasheet for TDK NLV32T-3R3J-EF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

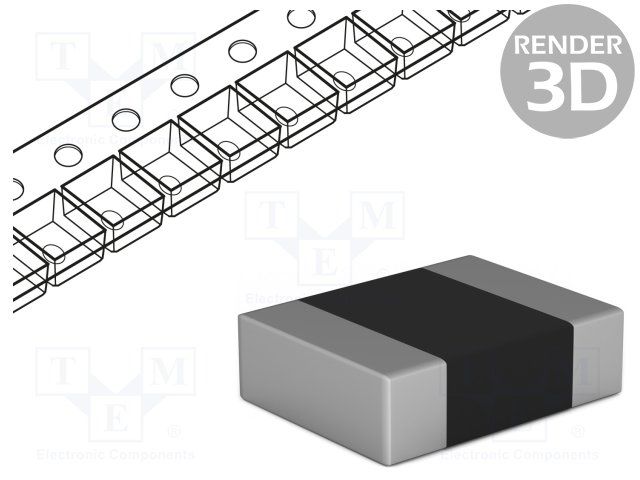

Product Images
