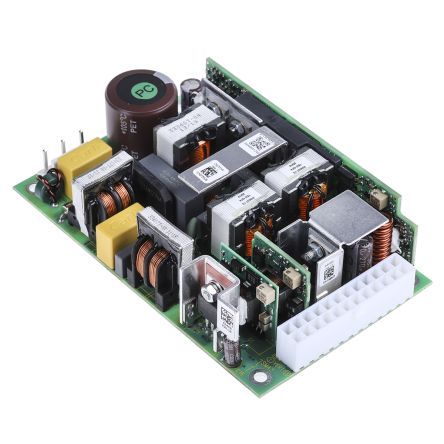

Enclosed AC/DC power supply, 180W output power, featuring four outputs: 24V/7.5A, 5V/8A, 15V/5A, and -15V/1A. Boasting 90% efficiency and a wide input voltage range of 90-264V AC, this chassis mountable unit offers 4.3kV isolation voltage. Operating from 0°C to 70°C, it meets CE and RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK NV14G5FF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK NV14G5FF technical specifications.
| Approvals | CE |
| Current - Output 1 | 7.5A |
| Current - Output 2 | 8A |
| Current - Output 3 | 5A |
| Depth | 76.2mm |
| Efficiency | 90% |
| Height | 1.25inch |
| Isolation Voltage | 4.3kV |
| Length | 4.6inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Power | 200W |
| Max Power Dissipation | 180W |
| Mount | Chassis Mount, Panel |
| Number of Outputs | 4 |
| Output Current | 8A |
| Output Power | 180W |
| Output Voltage | 24V |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | NV175 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 15V |
| Voltage - Output 4 | -15V |
| Weight | 250g |
| Width | 2.4inch |
| RoHS | Compliant |
