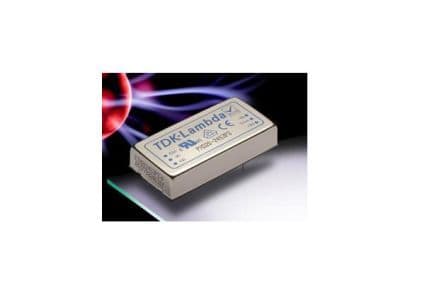

Isolated DC-DC converter module, 10W output power, 12V nominal output voltage, and 830mA maximum output current. Features include overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP). Operates with a 9V to 36V DC input range and offers 1.6kV isolation voltage. This RoHS compliant component is designed for PCB mounting and meets UL, CSA, CE, and EN approvals.
PackageModule
MountingThrough Hole, PCB
Power10W
Quick Jump:
Technical Specifications
TDK PXD1024WS12 technical specifications.
General
| Approvals | UL, CSA, CE, EN |
| Package/Case | Module |
| Current - Output 1 | 830mA |
| Depth | 50.8mm |
| Efficiency | 82% |
| Features | OVP, OCP, SCP |
| Height | 0.4inch |
| Isolation | Isolated |
| Isolation Voltage | 1.6kV |
| Length | 2inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 100°C |
| Max Output Current | 830mA |
| Max Output Power | 10W |
| Max Power Dissipation | 10W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 830mA |
| Output Power | 10W |
| Output Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PXD |
| Voltage - Output 1 | 12V |
| Width | 1inch |
Compliance
| RoHS | Compliant |
