30W DC-DC Converter module, outputting 15V at 2A. Features include over-voltage protection (OVP), over-current protection (OCP), and short-circuit protection (SCP). Operating input voltage range is 9V to 18V DC, with a nominal supply voltage of 12V. This board mount converter offers 1.6kV isolation voltage and operates efficiently at 88% with a wide temperature range of -40°C to 100°C. The module measures 2 inches in length, 1.6 inches in width, and 0.4 inches in height.
PackageModule
MountingThrough Hole
Power30W
Quick Jump:
Technical Specifications
TDK PXE3012S15 technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 2A |
| Depth | 50.8mm |
| Efficiency | 88% |
| Features | OVP, OCP, SCP |
| Height | 0.4inch |
| Isolation Voltage | 1.6kV |
| Length | 2inch |
| Max Input Voltage (DC) | 18V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 18V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Power | 30W |
| Max Power Dissipation | 30W |
| Mount | Through Hole |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 2A |
| Output Power | 30W |
| Output Voltage | 15V |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Series | PXE (30W) |
| Voltage - Output 1 | 15V |
| Width | 1.6inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK PXE3012S15 Datasheet
Download the complete datasheet for TDK PXE3012S15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

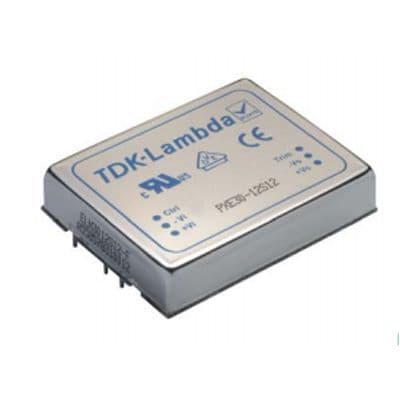

Product Images
