Board mount DC-DC converter delivering 30W output power at 12V. Features 2.5A maximum output current and 89% efficiency. Operates with an input voltage range of 18V to 36V DC. Includes overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP). Isolated design with 1.6kV isolation voltage. Through-hole mounting for PCB integration.
MountingThrough Hole, PCB
Power30W
Quick Jump:
Technical Specifications
TDK PXE3024S12 technical specifications.
General
| Current - Output 1 | 2.5A |
| Depth | 50.8mm |
| Efficiency | 89% |
| Features | OVP, OCP, SCP |
| Height | 0.4inch |
| Isolation | Isolated |
| Isolation Voltage | 1.6kV |
| Length | 50.8mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Output Power | 30W |
| Max Power Dissipation | 30W |
| Mount | Through Hole, PCB |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 30W |
| Output Voltage | 12V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | PXE (30W) |
| Voltage - Output 1 | 12V |
| Width | 1.6inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK PXE3024S12 Datasheet
Download the complete datasheet for TDK PXE3024S12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

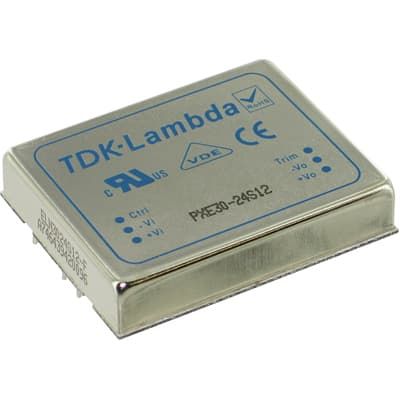

Product Images
