Ferrite-core, shielded, general-purpose surface mount inductor with 2.2µH inductance and 20% tolerance. Features a maximum DC current of 5.4A, DC resistance of 12mΩ, and a rated current of 5.5A. Operates across a temperature range of -40°C to 125°C. Dimensions are 7.3mm (L) x 6.8mm (W) x 3.2mm (H). RoHS compliant and halogen-free.
PackageNonstandard
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK RLF7030T-2R2M5R4 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Current | 5.4A |
| DC Resistance (DCR) | 12mR |
| Depth | 6.9mm |
| Height | 3.2mm |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 7.3mm |
| Max DC Current | 5.4A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 5.5A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 5.4A |
| RoHS Compliant | Yes |
| Saturation Current | 5.5A |
| Series | RLF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK RLF7030T-2R2M5R4 Datasheet
Download the complete datasheet for TDK RLF7030T-2R2M5R4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

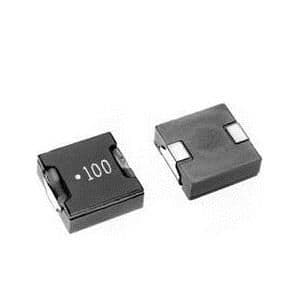

Product Images
