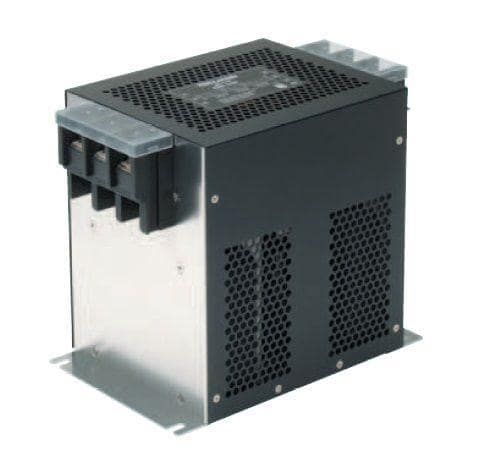

The RTHC-5050 is a chassis mount power line filter with a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. It has a maximum voltage rating of 500V AC and a current rating of 50A. The filter is RoHS compliant and has UL and EN approvals. It is packaged in bulk and has a weight of 5lb.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK RTHC-5050 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK RTHC-5050 technical specifications.
| Approvals | UL, EN |
| Current | 50A |
| Current Rating | 50A |
| Max Current Rating | 50A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Chassis Mount |
| Operating Frequency | 60 Hz |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | RTHC |
| Termination | Terminal Block |
| Voltage Rating (AC) | 500V |
| Weight | 5lb |
| RoHS | Compliant |
