General purpose shielded inductor featuring 100µH inductance with a 20% tolerance. This surface mount component utilizes a ferrite core and offers a current rating of 1.1A. Operating temperature range spans from -40°C to 105°C, with a DC resistance of 240mΩ. The component is RoHS compliant and packaged on tape and reel.
PackageNonstandard
Current Rating1.1A
MountingSurface Mount
Inductance100uH
Quick Jump:
Technical Specifications
TDK SLF10145T-101M1R0-PF technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.1A |
| DC Current | 1.1A |
| DC Resistance (DCR) | 240mR |
| Depth | 10.4mm |
| Height | 4.5mm |
| Height - Seated (Max) | 0.189inch |
| Inductance | 100uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 10.1mm |
| Max DC Current | 1A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 1A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1A |
| RoHS Compliant | Yes |
| Saturation Current | 1A |
| Series | SLF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 0.398inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF10145T-101M1R0-PF Datasheet
Download the complete datasheet for TDK SLF10145T-101M1R0-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

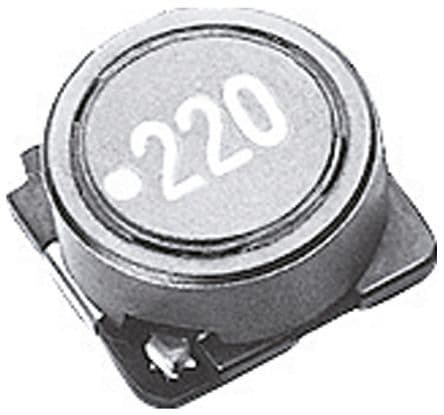

Product Images
