TDK
SLF10145T-102MR29-H
Inductor Power Shielded Wirewound 1000uH 20% 1KHz Ferrite 0.29A 3.36Ohm DCR Automotive T/R
PackageNonstandard
MountingSurface Mount
Inductance1mH
Quick Jump:
Technical Specifications
TDK SLF10145T-102MR29-H technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
3.36R
Height
4.5mm
Inductance
1mH
Length
10.1mm
Max DC Current
290mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
RoHS Compliant
Yes
Saturation Current
320mA
Series
SLF-H
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
TDK SLF10145T-102MR29-H Datasheet
Download the complete datasheet for TDK SLF10145T-102MR29-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

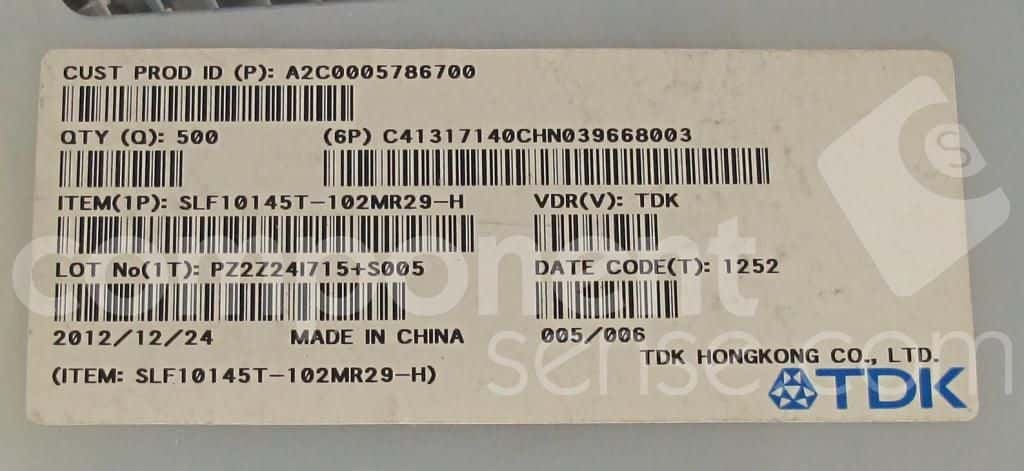

Product Images
