Surface mount general purpose inductor featuring 220µH inductance with a 20% tolerance. This shielded, ferrite-core component offers a rated current of 650mA and a DC resistance of 470mΩ. Operating across a temperature range of -40°C to 105°C, it is housed in a 4040 package and is RoHS compliant.
PackageNonstandard
Current Rating700mA
MountingSurface Mount
Inductance220uH
Quick Jump:
Technical Specifications
TDK SLF10145T-221MR65-PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
700mA
DC Current
700mA
DC Resistance (DCR)
470mR
Depth
10.4mm
Height
4.5mm
Height - Seated (Max)
0.189inch
Inductance
220uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
10.1mm
Max DC Current
650mA
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Rated Current-Max
650mA
Reach SVHC Compliant
No
RMS Current (Irms)
650mA
RoHS Compliant
Yes
Saturation Current
650mA
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
0.398inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF10145T-221MR65-PF Datasheet
Download the complete datasheet for TDK SLF10145T-221MR65-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

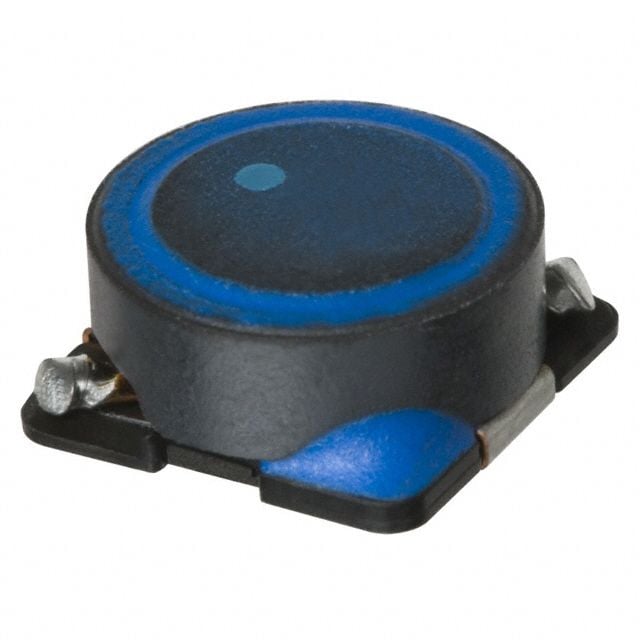

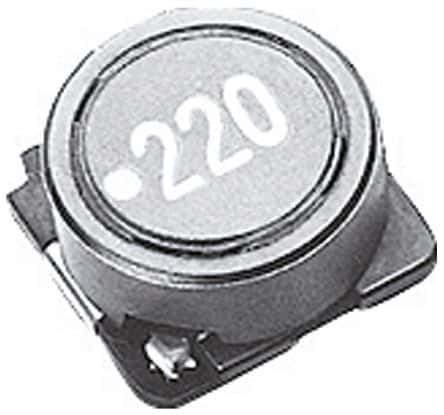

Product Images
