Surface mount, shielded wirewound power inductor with 150µH inductance and 20% tolerance. Features a ferrite core, 1.6A maximum DC current rating, and 210mΩ DC resistance. Operates within a -40°C to 105°C temperature range and meets AEC-Q200 automotive standards. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating1.5A
MountingSurface Mount
Inductance150uH
Quick Jump:
Technical Specifications
TDK SLF12575T-151M1R5-H technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.5A |
| DC Resistance (DCR) | 210mR |
| Height | 7.5mm |
| Height - Seated (Max) | 0.309inch |
| Inductance | 150uH |
| Inductance Tolerance | 20% |
| Length | 0.492inch |
| Max DC Current | 1.6A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.6A |
| RoHS Compliant | Yes |
| Saturation Current | 1.5A |
| Series | SLF-H |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF12575T-151M1R5-H Datasheet
Download the complete datasheet for TDK SLF12575T-151M1R5-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

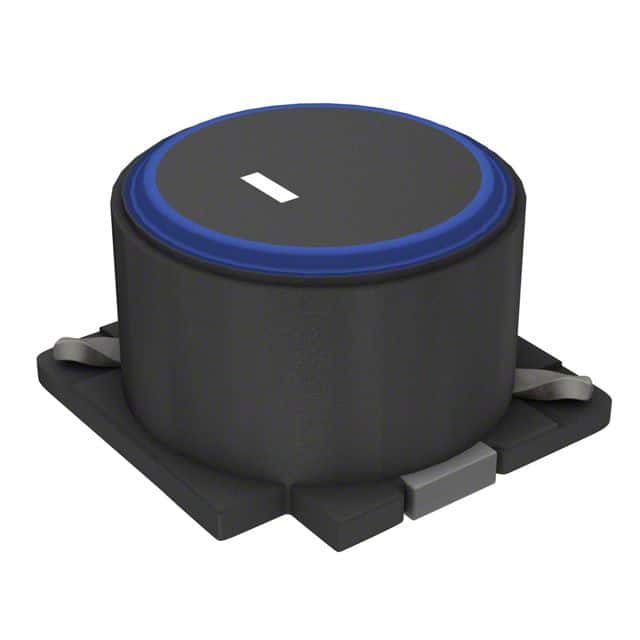

Product Images
