SMD shielded general purpose inductor with 33µH inductance and 20% tolerance. Features a ferrite core, 3.4A DC current rating, and 3.2A saturation current. Operating temperature range is -40°C to 105°C. DC resistance is 47.4mΩ. Dimensions are 12.5mm length, 12.8mm depth, and 7.5mm height.
PackageNonstandard
Current Rating3.4A
MountingSurface Mount
Inductance33uH
Quick Jump:
Technical Specifications
TDK SLF12575T-330M3R2-PF technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 3.4A |
| DC Current | 3.4A |
| DC Resistance (DCR) | 47.4mR |
| Depth | 12.8mm |
| Height | 7.5mm |
| Height - Seated (Max) | 0.309inch |
| Inductance | 33uH |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max DC Current | 3.4A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Rated Current-Max | 3.2A |
| RoHS Compliant | Yes |
| Saturation Current | 3.2A |
| Series | SLF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF12575T-330M3R2-PF Datasheet
Download the complete datasheet for TDK SLF12575T-330M3R2-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

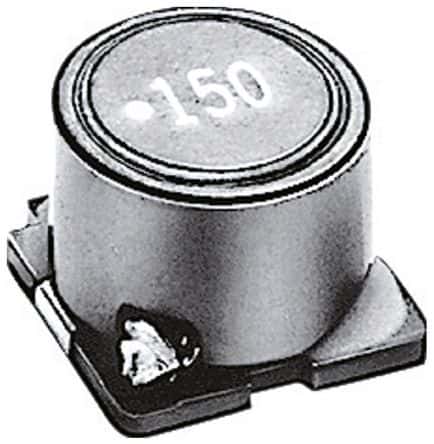

Product Images
