Surface mount, shielded wirewound power inductor with 47µH inductance and 20% tolerance. Features a 3A DC current rating, 2.7A saturation current, and a maximum DC resistance of 52.8mΩ. Operates within a temperature range of -40°C to 105°C, utilizing a ferrite core. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating3A
MountingSurface Mount
Inductance47uH
Quick Jump:
Technical Specifications
TDK SLF12575T-470M2R7-PF technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 3A |
| DC Current | 3A |
| DC Resistance (DCR) | 52.8mR |
| Depth | 12.8mm |
| Diameter | 8.5mm |
| Height | 7.5mm |
| Height - Seated (Max) | 0.309inch |
| Inductance | 47uH |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max DC Current | 3A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Rated Current-Max | 2.7A |
| RoHS Compliant | Yes |
| Saturation Current | 2.7A |
| Series | SLF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 0.492inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF12575T-470M2R7-PF Datasheet
Download the complete datasheet for TDK SLF12575T-470M2R7-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

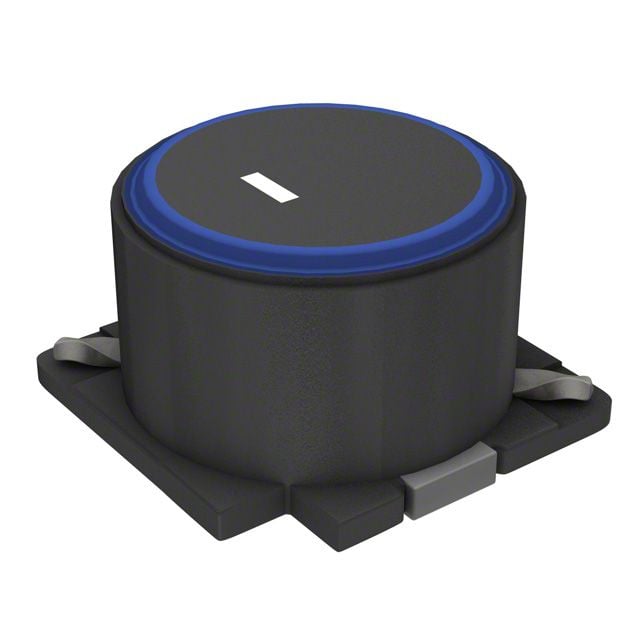

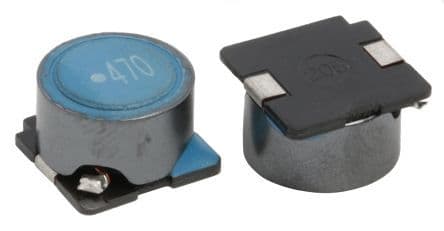

Product Images
