Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 1.3A rated DC current, and 1.8A saturation current. Operates within a -40°C to 85°C temperature range. Housed in a 2424 package with SMD/SMT termination.
Package2424
Current Rating1.8A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK SLF6028T-100M1R3-PF technical specifications.
General
| Package/Case | 2424 |
| Core Material | Ferrite |
| Current Rating | 1.8A |
| DC Current | 1.3A |
| DC Resistance (DCR) | 53.2mR |
| Depth | 6.2mm |
| Height | 2.8mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Max DC Current | 1.3A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 1.3A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Saturation Current | 1.3A |
| Series | SLF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.236inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF6028T-100M1R3-PF Datasheet
Download the complete datasheet for TDK SLF6028T-100M1R3-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

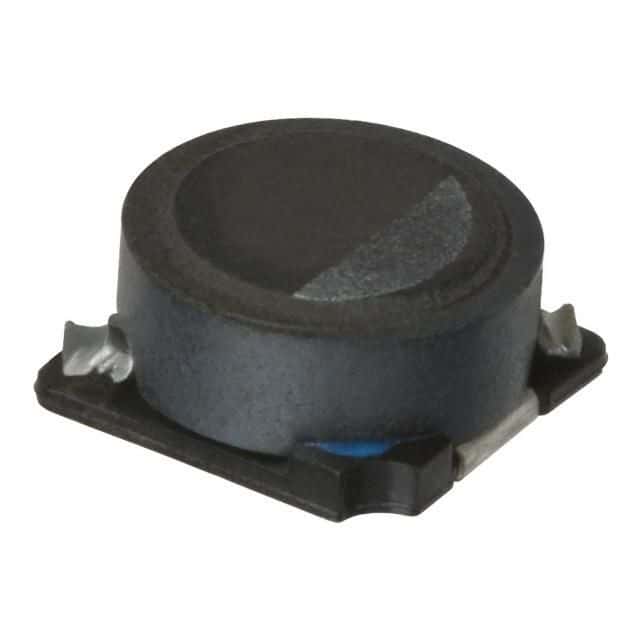

Product Images
