General purpose, shielded, surface mount inductor featuring a ferrite core and 4.7µH inductance with a 20% tolerance. This component offers a 2.5A RMS current rating and a 1.6A DC current rating, with a low DC resistance of 34.1mΩ. Designed for a wide operating temperature range of -40°C to 105°C, it is packaged in a 6028 metric case size (2424 package) and is RoHS compliant.
Package2424
Current Rating2.5A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK SLF6028T-4R7M1R6-PF technical specifications.
General
| Case Code (Metric) | 6028 |
| Package/Case | 2424 |
| Core Material | Ferrite |
| Current Rating | 2.5A |
| DC Current | 1.6A |
| DC Resistance (DCR) | 34.1mR |
| Depth | 6.2mm |
| Height | 2.8mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.236inch |
| Max DC Current | 1.6A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.5A |
| RoHS Compliant | Yes |
| Saturation Current | 1.6A |
| Series | SLF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.236inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF6028T-4R7M1R6-PF Datasheet
Download the complete datasheet for TDK SLF6028T-4R7M1R6-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

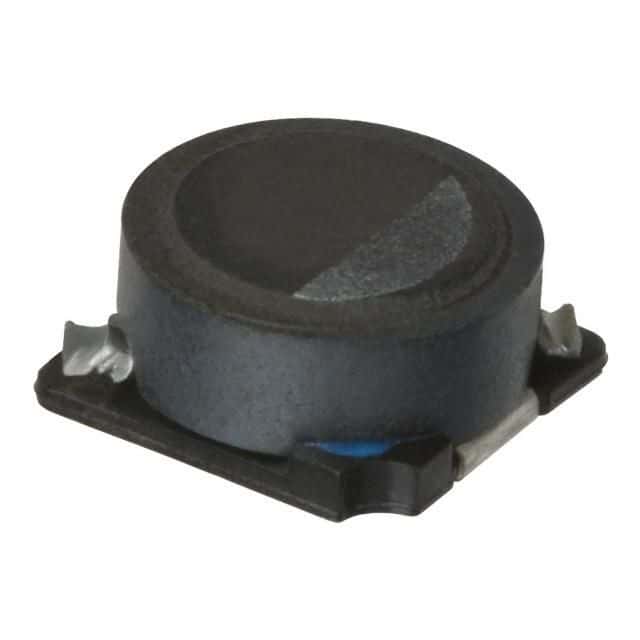

Product Images
