Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 1.4A current rating, and 53mΩ DC resistance. Operates from -20°C to 85°C and is supplied on tape and reel.
PackageNonstandard
Current Rating1.4A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK SLF7032T-100M1R4-2PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.4A
DC Current
1.4A
DC Resistance (DCR)
53mR
Depth
7.2mm
Height
0.126inch
Height - Seated (Max)
0.134inch
Inductance
10uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7.2mm
Max DC Current
1.4A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
1.4A
RoHS Compliant
Yes
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.276inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF7032T-100M1R4-2PF Datasheet
Download the complete datasheet for TDK SLF7032T-100M1R4-2PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

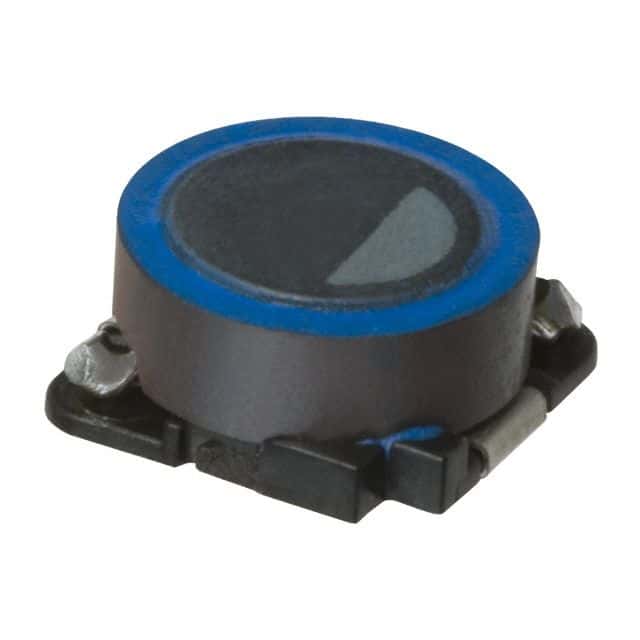

Product Images
