Surface mount shielded wirewound power inductor featuring 220µH inductance with a 20% tolerance. This ferrite core component offers a rated current of 290mA and a DC resistance of 1.05Ω at a test frequency of 100kHz. Operating within a temperature range of -20°C to 105°C, it is provided in a 7032 metric case size and packaged on tape and reel.
PackageNonstandard
Current Rating290mA
MountingSurface Mount
Inductance220uH
Quick Jump:
Technical Specifications
TDK SLF7032T-221MR29-2PF technical specifications.
General
Case Code (Metric)
7032
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
290mA
DC Current
290mA
DC Resistance (DCR)
1.05R
Depth
7.2mm
Height
0.126inch
Height - Seated (Max)
0.134inch
Inductance
220uH
Lead Free
Lead Free
Length
0.276inch
Max DC Current
290mA
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Rated Current-Max
290mA
RoHS Compliant
Yes
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.276inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF7032T-221MR29-2PF Datasheet
Download the complete datasheet for TDK SLF7032T-221MR29-2PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

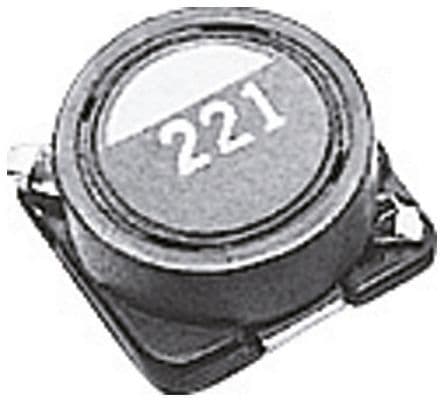

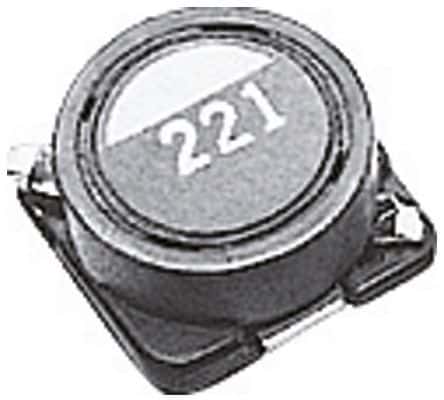

Product Images
