Surface mount wirewound power inductor featuring 10µH inductance with a 20% tolerance, designed for automotive applications and AEC-Q200 qualified. This shielded ferrite core component offers a 1.8A current rating and a low 56.4mΩ DC resistance. Operating across a -40°C to 125°C temperature range, it is supplied in a 7045 metric case size on tape and reel packaging.
PackageNonstandard
Current Rating1.8A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK SLF7045T-100M1R8-H technical specifications.
General
| Case Code (Metric) | 7045 |
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.8A |
| DC Resistance (DCR) | 56.4mR |
| Height | 4.5mm |
| Height - Seated (Max) | 0.189inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Length | 0.276inch |
| Max DC Current | 1.8A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.8A |
| Saturation Current | 1.8A |
| Series | SLF-H |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.276inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SLF7045T-100M1R8-H Datasheet
Download the complete datasheet for TDK SLF7045T-100M1R8-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

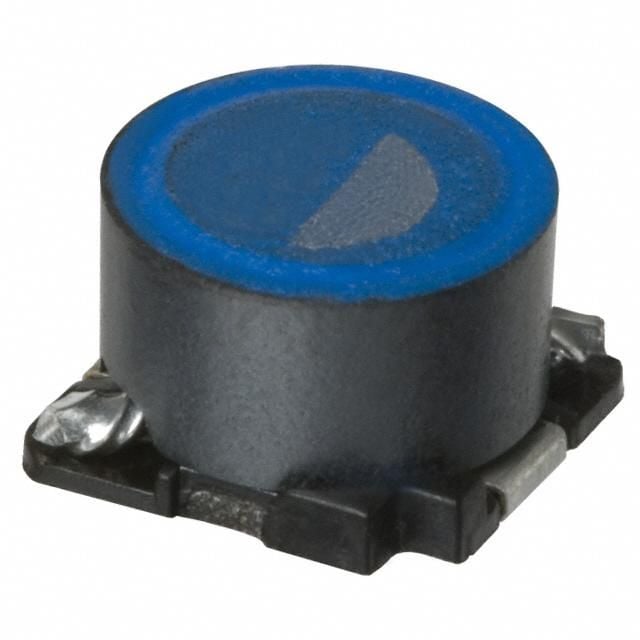

Product Images
