General purpose, shielded, surface mount inductor with 150µH inductance and 20% tolerance. Features a ferrite core, 7.2mm depth, 7mm length, and 7mm width. Rated for 400mA saturation current and 550mA RMS current, with a DC resistance of 340mΩ. Operates from -40°C to 105°C and is RoHS compliant.
PackageNonstandard
MountingSurface Mount
Inductance150uH
Quick Jump:
Technical Specifications
TDK SLF7045T-151MR40-PF technical specifications.
General
Case Code (Metric)
7045
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
550mA
DC Resistance (DCR)
340mR
Depth
7.2mm
Height
4.5mm
Inductance
150uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7mm
Max DC Current
550mA
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
400mA
Reach SVHC Compliant
No
RMS Current (Irms)
550mA
RoHS Compliant
Yes
Saturation Current
400mA
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
TDK SLF7045T-151MR40-PF Datasheet
Download the complete datasheet for TDK SLF7045T-151MR40-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

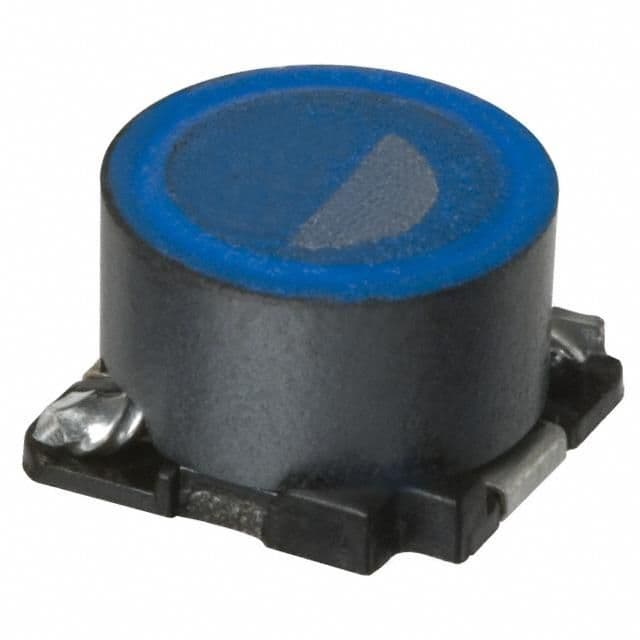

Product Images
