Surface mount general purpose inductor featuring 220µH inductance with a 20% tolerance. This shielded, ferrite-core component operates within a -40°C to 85°C temperature range and handles a DC current of 450mA. It has a DC resistance of 520mΩ and a saturation current of 330mA, with dimensions of 7.2mm depth, 4.5mm height, and 7mm length. Packaged on tape and reel, this RoHS compliant inductor is designed for surface mount applications.
PackageNonstandard
MountingSurface Mount
Inductance220uH
Quick Jump:
Technical Specifications
TDK SLF7045T-221MR33-PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
450mA
DC Resistance (DCR)
520mR
Depth
7.2mm
Height
4.5mm
Inductance
220uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7mm
Max DC Current
450mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
450mA
RoHS Compliant
Yes
Saturation Current
330mA
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
TDK SLF7045T-221MR33-PF Datasheet
Download the complete datasheet for TDK SLF7045T-221MR33-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

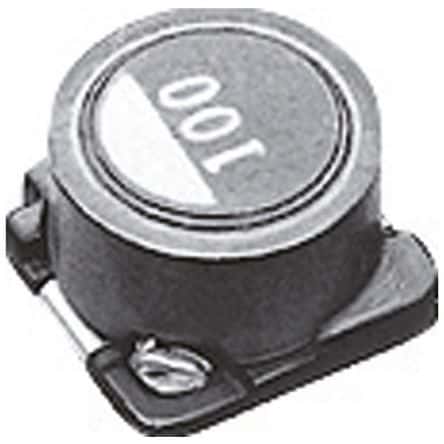

Product Images
