Surface mount shielded wirewound power inductor with 2.2µH inductance and 20% tolerance. Features a metal and ferrite core, 2.9A RMS current rating, and 3.3A saturation current. Operates from -40°C to 125°C with a low DC resistance of 95mΩ at 100kHz. Dimensions are 4.1mm depth, 1.2mm height, and 4.4mm length.
PackageNonstandard
Current Rating2.9A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK SPM4012T-2R2M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal, Ferrite |
| Current Rating | 2.9A |
| DC Resistance (DCR) | 95mR |
| Depth | 4.1mm |
| Height | 1.2mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.173inch |
| Max DC Current | 3.3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.9A |
| RoHS Compliant | Yes |
| Saturation Current | 3.3A |
| Series | SPM |
| Shielding | Shielded |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.161inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SPM4012T-2R2M Datasheet
Download the complete datasheet for TDK SPM4012T-2R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

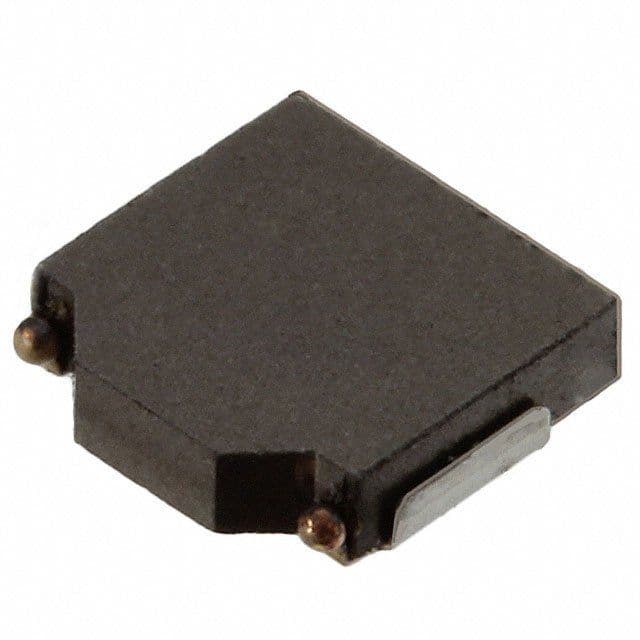

Product Images
