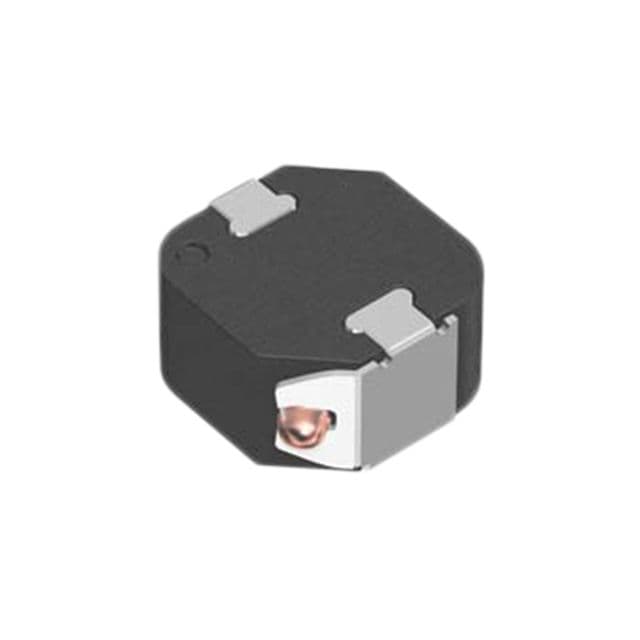

Surface mount shielded wirewound power inductor with 1µH inductance and 20% tolerance. Features a metal core, 10.1A current rating, and 8.5A saturation current. DC resistance is 11.44mΩ at a test frequency of 100kHz. Operating temperature range is -40°C to 125°C. Packaged in cut tape with 500 units per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK SPM5030T-1R0M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Metric) | 5030 |
| Package/Case | Nonstandard |
| Core Material | Metal, Ferrite |
| Current Rating | 10.1A |
| DC Resistance (DCR) | 11.44mR |
| Depth | 5mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 1uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max DC Current | 10.1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 10.1A |
| RoHS Compliant | Yes |
| Saturation Current | 8.5A |
| Series | SPM |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.197inch |
| RoHS | Compliant |
