Surface mount shielded wirewound fixed inductor with 1.5µH inductance and 20% tolerance. Features a metal core, 11A RMS current rating, and 11.5A saturation current. DC resistance is 10.67mΩ at 100kHz test frequency. Operating temperature range is -40°C to 125°C. Packaged in tape and reel.
PackageNonstandard
Current Rating11A
MountingSurface Mount
Inductance1.5uH
Quick Jump:
Technical Specifications
TDK SPM6530T-1R5M100 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal |
| Current Rating | 11A |
| DC Resistance (DCR) | 10.67mR |
| Depth | 6.8mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 1.5uH |
| Inductance Tolerance | 20% |
| Length | 0.28inch |
| Max DC Current | 1.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 11A |
| RoHS Compliant | Yes |
| Saturation Current | 11.5A |
| Series | SPM |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.256inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK SPM6530T-1R5M100 Datasheet
Download the complete datasheet for TDK SPM6530T-1R5M100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

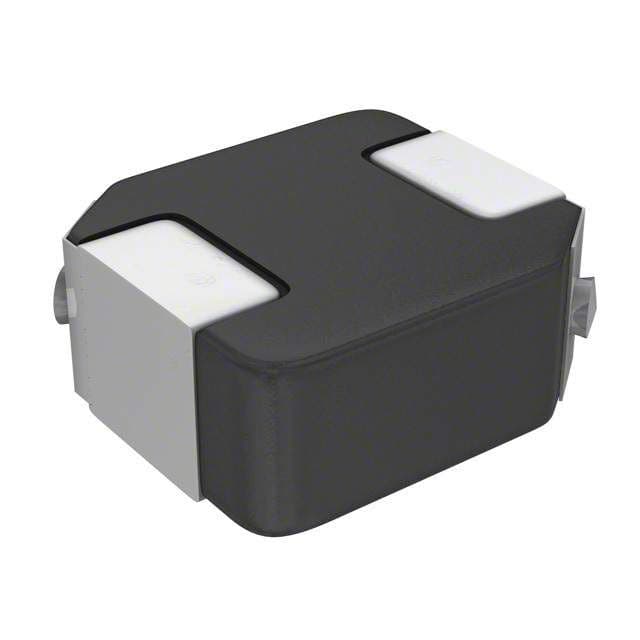

Product Images
