Surface mount general purpose inductor featuring 2.2µH inductance with a 20% tolerance. This shielded, ferrite-core component offers a DC current rating of 8.2A and a low DC resistance of 19mΩ. Operating across a wide temperature range of -40°C to 125°C, it is designed for reliability and compliance with RoHS standards. Its compact 7.1mm x 6.5mm x 3mm dimensions and tape and reel packaging facilitate efficient automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK SPM6530T-2R2M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal |
| DC Current | 8.2A |
| DC Resistance (DCR) | 19mR |
| Depth | 6.8mm |
| Height | 3mm |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max DC Current | 8.2A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 8.2A |
| RoHS Compliant | Yes |
| Saturation Current | 8.4A |
| Series | SPM |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK SPM6530T-2R2M Datasheet
Download the complete datasheet for TDK SPM6530T-2R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

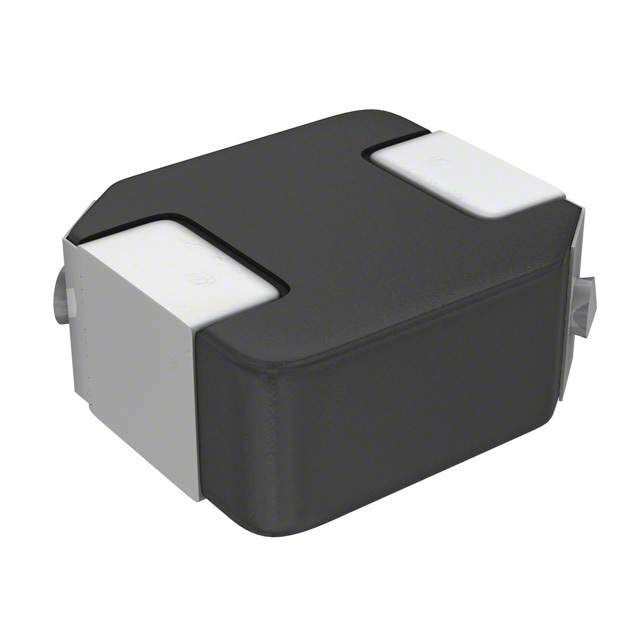

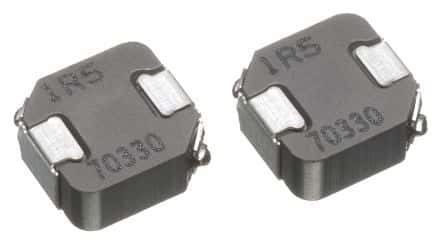

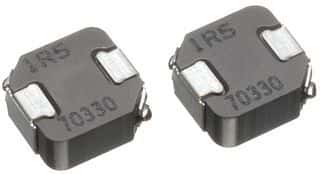

Product Images
