Shielded, surface-mount general-purpose inductor with 470nH inductance and 20% tolerance. Features a ferrite core, 3.63mR DC resistance, and a maximum DC current rating of 17A. Operates within a temperature range of -40°C to 125°C. Packaged in tape and reel for automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance470nH
Quick Jump:
Technical Specifications
TDK SPM6530T-R47M170 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal |
| DC Resistance (DCR) | 3.63mR |
| Depth | 6.8mm |
| Height | 3mm |
| Inductance | 470nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max DC Current | 17A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 20.5A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 20A |
| RoHS Compliant | Yes |
| Saturation Current | 20.5A |
| Series | SPM |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK SPM6530T-R47M170 Datasheet
Download the complete datasheet for TDK SPM6530T-R47M170 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

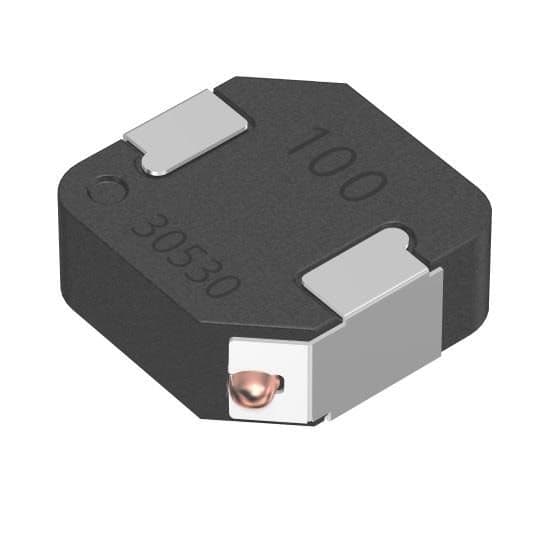

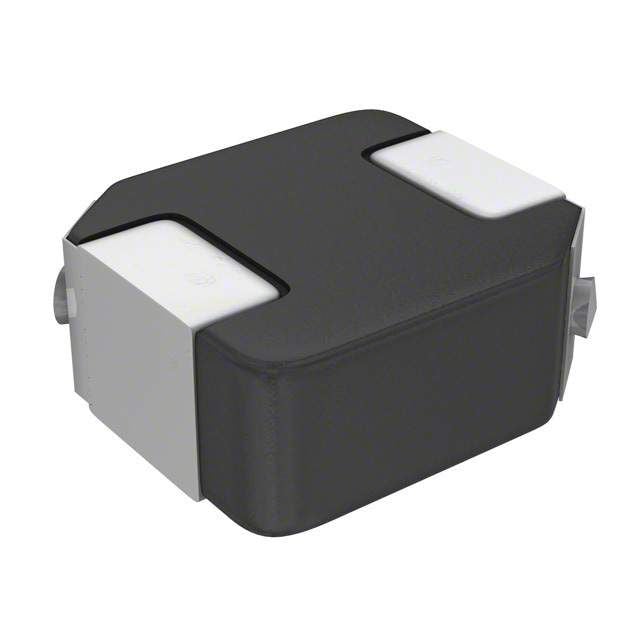

Product Images
