Surface mount shielded wirewound power inductor with 0.68µH inductance and 20% tolerance, designed for high current applications up to 16A RMS. Features a metal core for efficient magnetic shielding and a low DC resistance of 5.39mΩ. Operating temperature range from -40°C to 125°C, with a saturation current of 16.6A. Packaged in tape and reel for automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance680nH
Quick Jump:
Technical Specifications

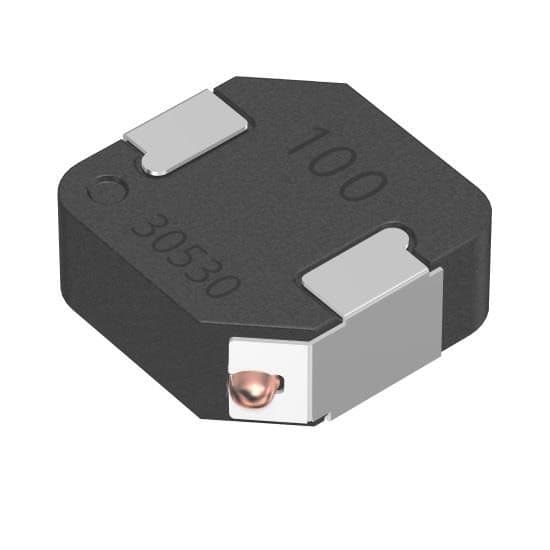

TDK SPM6530T-R68M140 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal |
| DC Resistance (DCR) | 5.39mR |
| Depth | 6.8mm |
| Height | 3mm |
| Inductance | 680nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max DC Current | 14A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 16A |
| RoHS Compliant | Yes |
| Saturation Current | 16.6A |
| Series | SPM |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.5mm |
