Technical Specifications

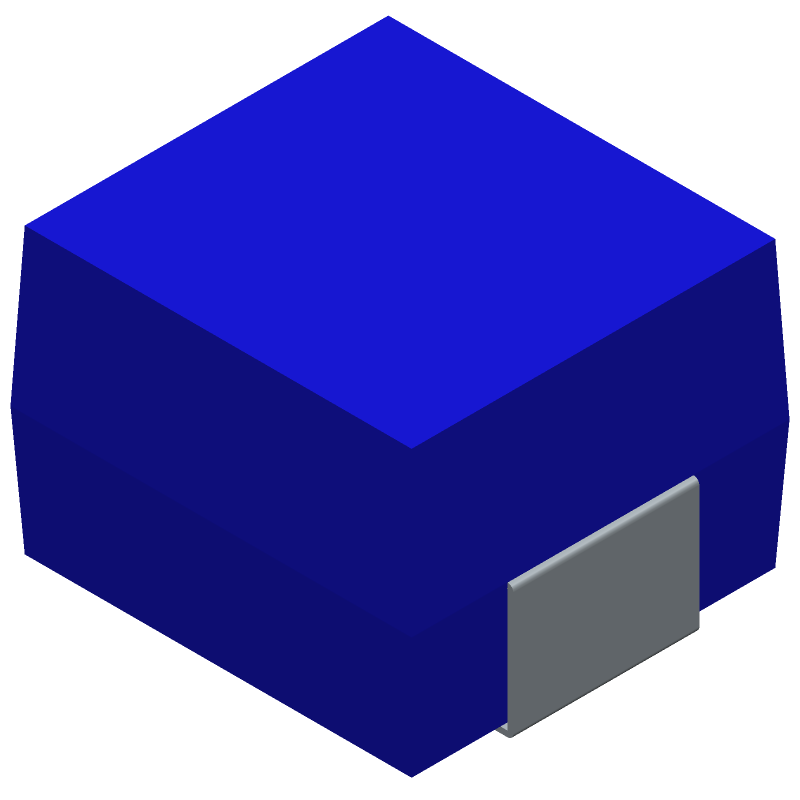

TDK SPM6550T-150M-HZ technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 7.1 |
| Tolerance | 20 |
| Package Width | 6.5 |
| Package Height | 5 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 15 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | POWER INDUCTOR |
| DC Resistance | 0.0864 |
| Rated Current-Max | 3.6 |
| Test Frequency | 0.1 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
TDK SPM6550T-150M-HZ Datasheet
Download the complete datasheet for TDK SPM6550T-150M-HZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
