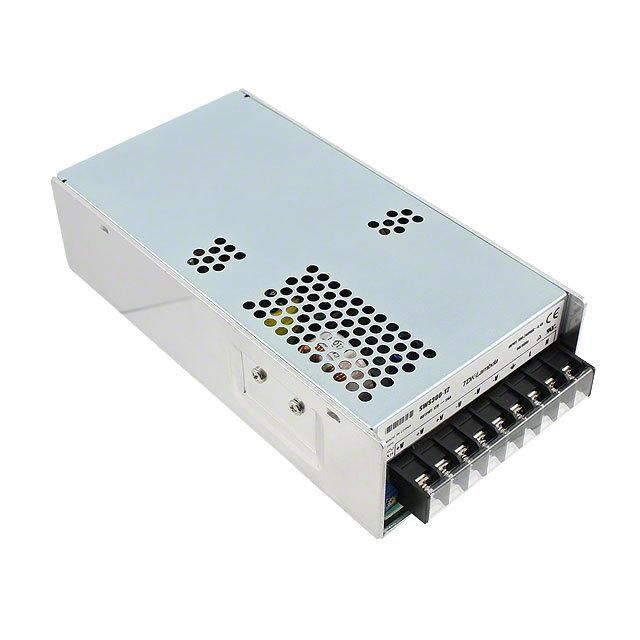

300W AC/DC power supply, single output, delivering 24V at 13A. Features 84% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-265V AC at 60Hz. Operates from -20°C to 65°C, suitable for chassis, panel, or desktop mounting.
Frequency60Hz
MountingChassis Mount, Panel, Desktop
Power300W
Quick Jump:
Technical Specifications
TDK SWS300-24 technical specifications.
General
| Current - Output 1 | 13A |
| Depth | 52mm |
| Efficiency | 84% |
| Frequency | 60Hz |
| Height | 4.01inch |
| Isolation Voltage | 3kV |
| Length | 7.8inch |
| Max Current Rating | 3.6A |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 13A |
| Max Output Power | 300W |
| Max Power Dissipation | 300W |
| Mount | Chassis Mount, Panel, Desktop |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 13A |
| Output Power | 300W |
| Output Voltage | 24V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | SWS300 (300W) |
| Voltage - Output 1 | 24V |
| Weight | 14.33lb |
| Width | 2.05inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TDK SWS300-24 Datasheet
Download the complete datasheet for TDK SWS300-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
