TDK

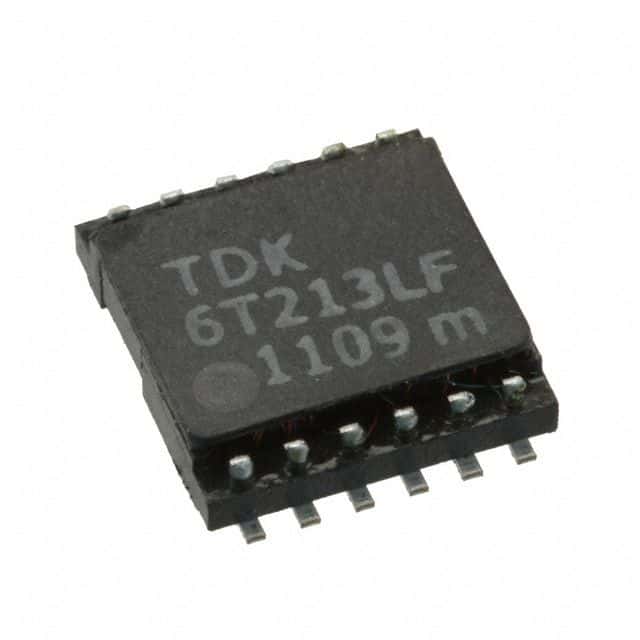

TLA-6T213LF-T
Pulse Transformer, LAN; 10/100/1000 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT
MountingSurface Mount
Inductance350uH
Quick Jump:
Technical Specifications
TDK TLA-6T213LF-T technical specifications.
General
Depth
9.47mm
Height
2.2mm
Height - Seated (Max)
2.2mm
Inductance
350uH
Insertion Loss
1dB
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Length
8.4mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
TLA
Turns Ratio
1:1
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
TDK TLA-6T213LF-T Datasheet
Download the complete datasheet for TDK TLA-6T213LF-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
