Through-hole fixed inductor featuring 1mH inductance with a 5% tolerance, tested at 1kHz. This radial package component offers a maximum DC current of 500mA and a saturation current of 510mA, with a DC resistance of 1.4 Ohms. It operates within a temperature range of -20°C to 85°C and has a Q factor of 20 at 1kHz. The inductor is unshielded and RoHS compliant.
PackageRadial
MountingThrough Hole
Inductance1mH
Quick Jump:
Technical Specifications
TDK TSL1112RA-102JR50-PF technical specifications.
General
Package/Case
Radial
DC Resistance (DCR)
1.4R
Diameter
11.5mm
Height
12.5mm
Inductance
1mH
Inductance Tolerance
10%
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Radial
Length
12.2mm
Max DC Current
500mA
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Through Hole
Package Quantity
500
Packaging
Tape and Reel
Q Factor
20
Radiation Hardening
No
Rated Current-Max
510mA
Reach SVHC Compliant
No
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Saturation Current
510mA
Self Resonant Frequency
1.1MHz
Series
TSL
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
5%
Width
11.2mm
Compliance
RoHS
Compliant
Datasheet
TDK TSL1112RA-102JR50-PF Datasheet
Download the complete datasheet for TDK TSL1112RA-102JR50-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

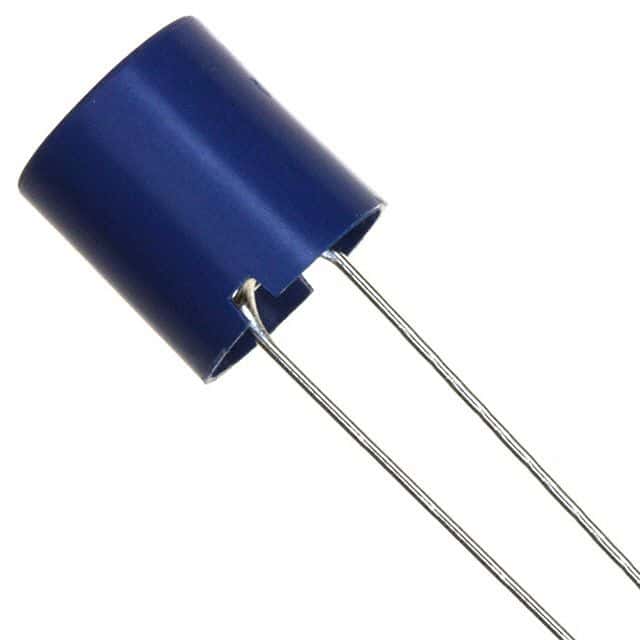

Product Images
