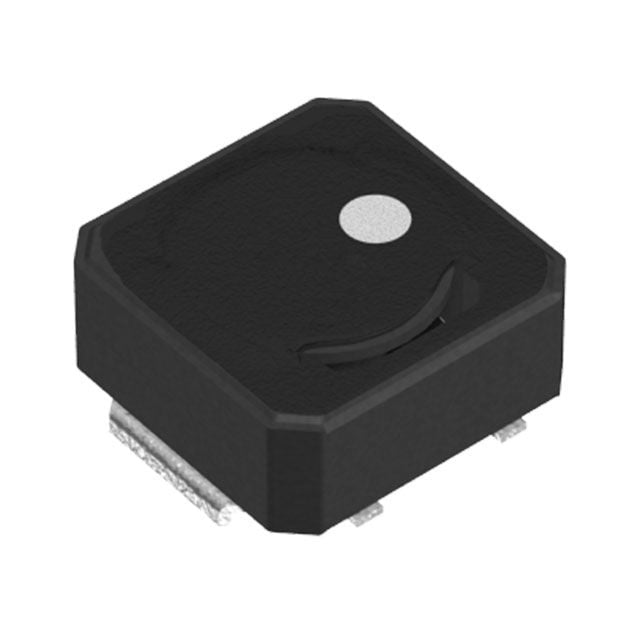

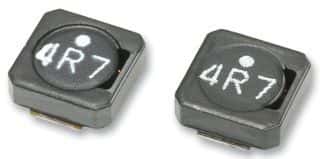

Surface mount shielded wirewound power inductor with 2.7µH inductance and 30% tolerance, tested at 100kHz. Features a ferrite core, 2.28A DC current rating, and 2.55A RMS current. Operating temperature range is -40°C to 105°C. DC resistance is 83mΩ. Packaged in tape and reel for 5020 metric case size.
PackageNonstandard
Current Rating2.28A
MountingSurface Mount
Inductance2.7uH
Quick Jump:
Technical Specifications
TDK VLCF5020T-2R7N2R2-1 technical specifications.
General
Case Code (Metric)
5020
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2.28A
DC Current
2.28A
DC Resistance (DCR)
83mR
Depth
5.2mm
Height
2mm
Height - Seated (Max)
0.079inch
Inductance
2.7uH
Inductance Tolerance
30%
Inductor Type
POWER
Lead Free
Lead Free
Length
0.197inch
Max DC Current
2.28A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
2.28A
Reach SVHC Compliant
No
RMS Current (Irms)
2.55A
RoHS Compliant
Yes
Saturation Current
2.28A
Series
VLCF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
TDK VLCF5020T-2R7N2R2-1 Datasheet
Download the complete datasheet for TDK VLCF5020T-2R7N2R2-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
